Semiconductor Equipment Manufacturing, Inc. are engaged in offering a wide range of Advantest T5581H. Our range of product is widely appreciated by our clients for its various features like durability.

Our main product, Advantest T5581H, is popular among customers in the world. Our pursuing the service aims of contract abiding and trustworthiness. We sincerely welcome business people and friends at home and abroad to establish long-term and win-win cooperation relationship with Semiconductor Equipment Manufacturing, Inc.

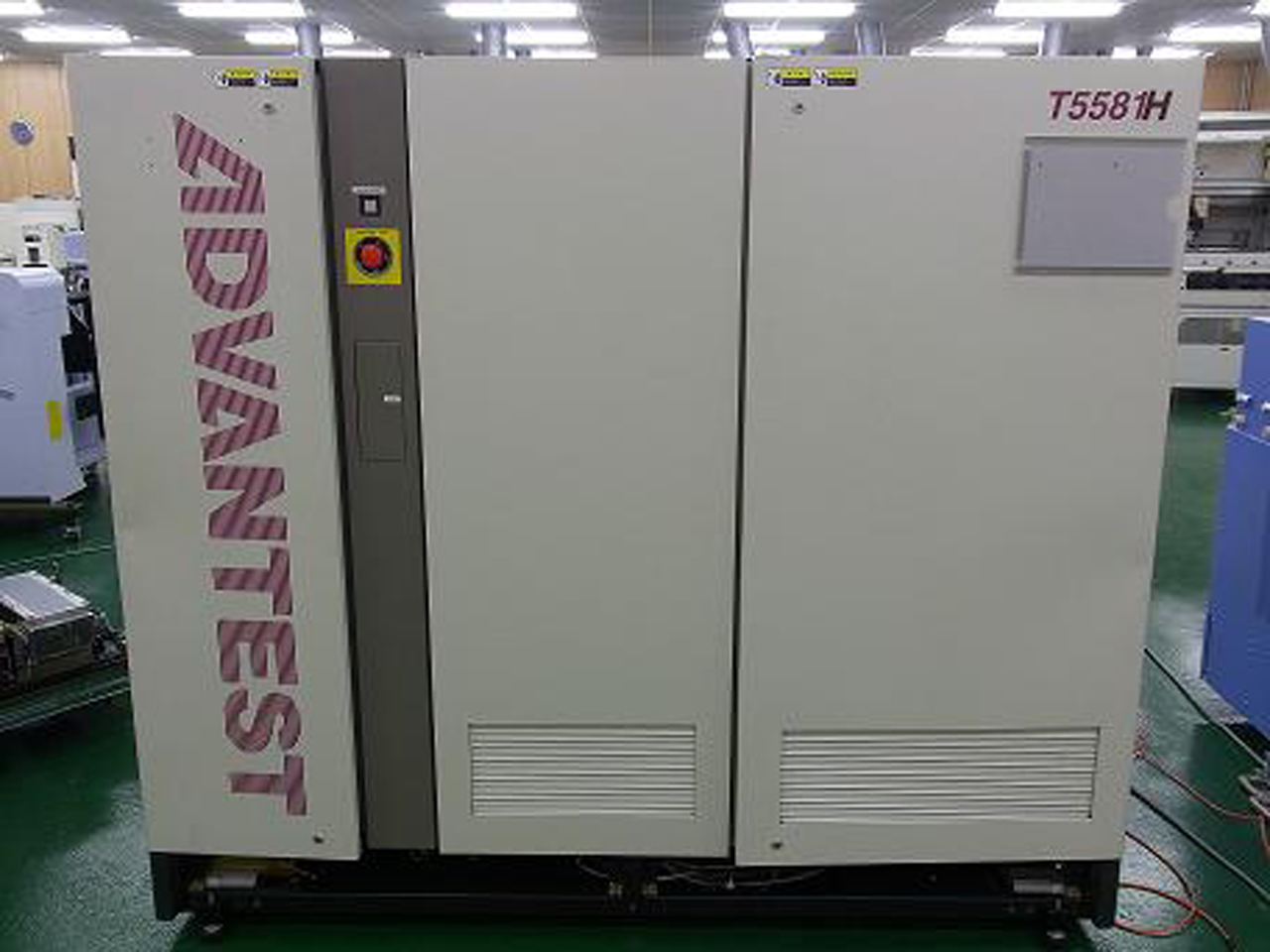

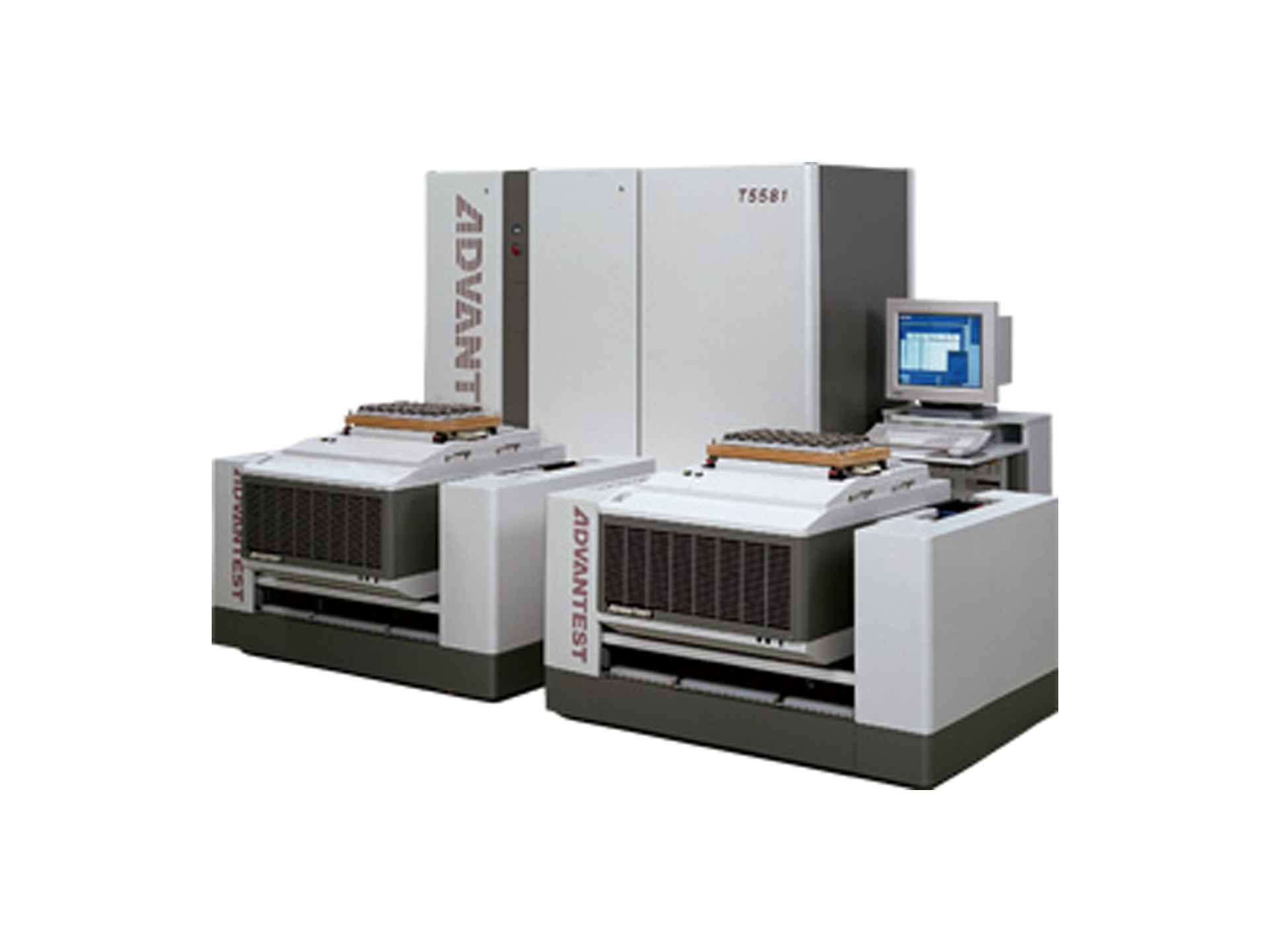

Advantest T5581H
Model: Advantest T5581H
Advantest T5581H


Please refer to the features of Advantest T5581H. For further product details, please do not hesitate to let us know.
1. Various connection mode for optimizing to achieve automatically marking.
2. Excellent operation.
3. High precision.
4. High reliability.

Advantest T5581H

We are an expert Advantest T5581H, supplier and exporter, located in Taiwan. We offer our customers a comprehensive range of products that match the strict quality requirements of International market which has earned our company the distinct reputation of being a quality oriented Exporter. Please contact us if you are free.

On the basis of the concept of "to service the customers by credit" and the management method of 'customer oriented', we can provide the customers top quality Advantest T5581H with superior services. We believe that we can create more business opportunities for you. Your profit is what we are concerned about. We wish to cooperate with you! Sincerely welcomes to visit us.
SYSTEM CONFIGURATION LIST
PRINT OUT AT 2007/01/29 12:19:00
CONFIGURATION OF TEST HEAD
PIN CONFIGURATION 1.640DR+288I/O
2.960DR+288I/O
3.640DR+576I/O
4.960DR+576I/O [1-4] ............> 4
TH CABLE LENGTH 1.5M
2.8M [1,2] ......................> 1
NUMBER OF TEST HEAD [1,2] ...........................>2
CONFIGURATION OF TEST HEAD 1
TEST HEAD TYPE 1.816CH
2.1600CH [1,2] .....................> 2
PE BOARD TYPE 0.NO BOARD
1.BGM-021633 (FULL PE)
2.BGM-021633X02 (I/O PE)
3.BGM-021633X03 (DR PE)
SLOT 33 36 39 161 164 167
CHILD A ....> 1 1 1 1 1 1
CHILD B ....> 1 1 1 1 1 1
CHILD C ....> 1 1 1 1 1 1
CHILD D ....> 1 1 1 1 1 1
CHILD E ....> 1 1 1 1 1 1
CHILD F ....> 1 1 1 1 1 1
CHILD G ....> 1 1 1 1 1 1
CHILD H ....> 1 1 1 1 1 1
CONFIGURATION OF TEST HEAD 2
TEST HEAD TYPE 1.816CH
2.1600CH [1,2] .....................> 2
PE BOARD TYPE 0.NO BOARD
1.BGM-021633 (FULL PE)
2.BGM-021633X02 (I/O PE)
3.BGM-021633X03 (DR PE)
SLOT 33 36 39 161 164 167
CHILD A ....> 1 1 1 1 1 1
CHILD B ....> 1 1 1 1 1 1
CHILD C ....> 1 1 1 1 1 1
CHILD D ....> 1 1 1 1 1 1
CHILD E ....> 1 1 1 1 1 1
CHILD F ....> 1 1 1 1 1 1
CHILD G ....> 1 1 1 1 1 1
CHILD H ....> 1 1 1 1 1 1
CONFIGURATION OF DPU
1'ST DPU : STN 1,2 [Y,N] ..........................> YES
2'ND DPU : STN 1,2 [Y,N] ..........................> YES
TEST HEAD 1 DC CONFIGURATION [1-32] .............> 1-32
10V PPS SPEC [1,2] (1:0.4A 2:0.8A) ......> 2
10V PPS CONFIGURATION [1-64] .............> 1-64
16V PPS CONFIGURATION [33-64] ............>
HV PPS CONFIGURATION [1-4] .............>
TEST HEAD 2 DC CONFIGURATION [1-32] .............> 1-32
10V PPS SPEC [1,2] (1:0.4A 2:0.8A) ......> 2
10V PPS CONFIGURATION [1-64] .............> 1-64
16V PPS CONFIGURATION [33-64] ............>
HV PPS CONFIGURATION [1-4] .............>
1'ST GPIB I/F BOARD 0.NONE
1.BGR-010944X01
2.BGR-010944X02 3.BGR-010944X03
4.BGR-010944X04
5.BGK-012718 [0-5] .........> 0
2'ND GPIB I/F BOARD 0.NONE
1.BGR-016793 (DPU I/F)
2.BGR-010944X05
3.BGK-012718X02 [0-3] .........> 1
DMM TYPE 1.TR6861
2.R6871E
3.R6551
4.R6552T [1-4] .........> 4
AC FREQUENCY (Hz) [50,60] ........................> 50
CONFIGURATION OF ALPG
NUMBER OF ALPG [1,2,4] ..............................> 2
CONFIGURATION OF DBM
DBM OPTION EXIST [Y,N] ..............................> NO
CONFIGURATION OF FM
NUMBER OF FM BOARD [0-4] ............................> 0
SIZE OF AFM BOARD [0-2] [0:256K 1:1M 2:4M] ........> 0
PATTERN MEMORY(PM) BOARD EXIST [Y,N] ................> No
CONFIGURATION OF MRA
MRA2/3 OPTION [Y,N] ...........................> NO
